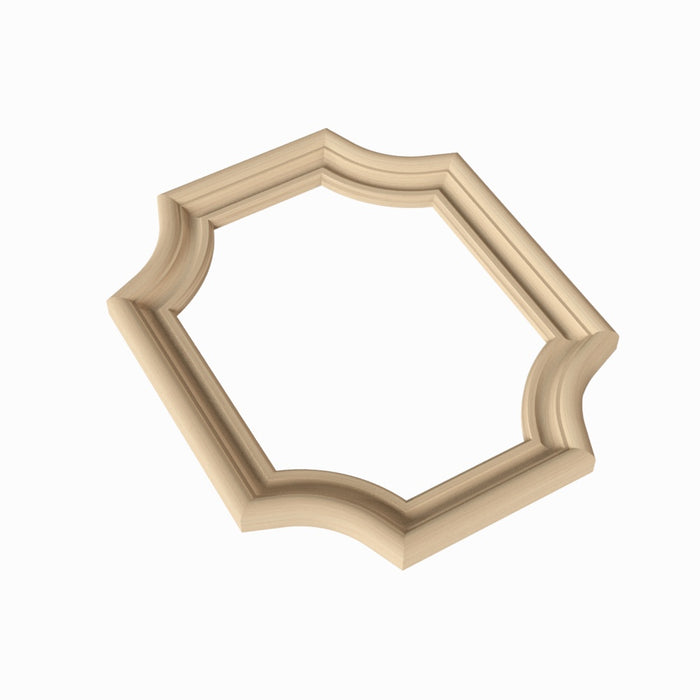

Coved Corner Tracery Panel
SKU CLGPAN218 · Sold in Pairs · Cast Resin

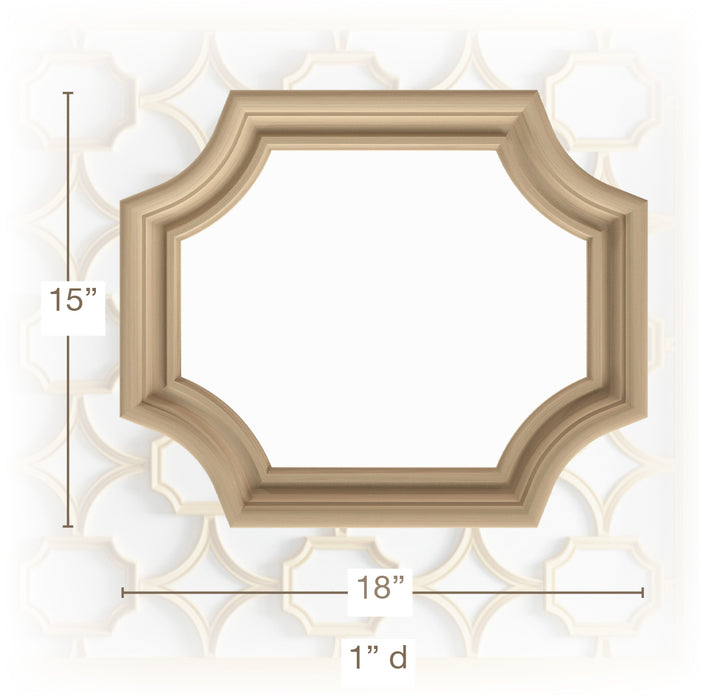

18″W × 15″H × 1″D · Corner Geometry · Unfinished

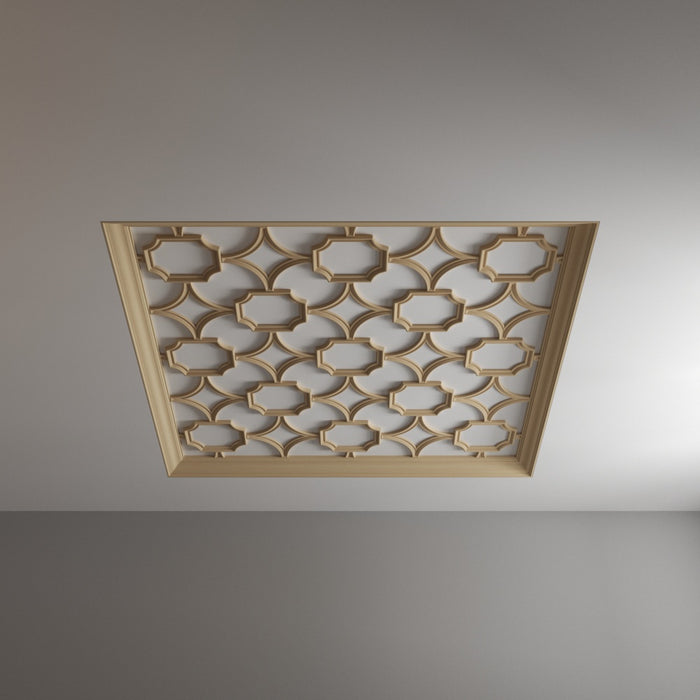

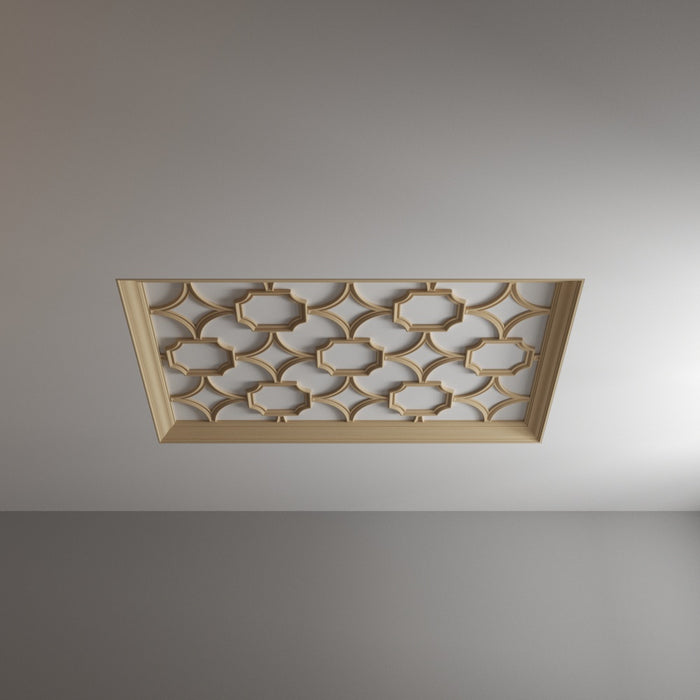

The corner piece of a complete tracery ceiling system. Precision-cast resin with crisp relief detail — designed to pair with the Diamond Tracery Panel and Ceiling Tips for a seamless, repeating ceiling pattern.
A tracery ceiling demands precision at the corners — the Coved Corner panel delivers the geometry that anchors the entire pattern.
Product Details

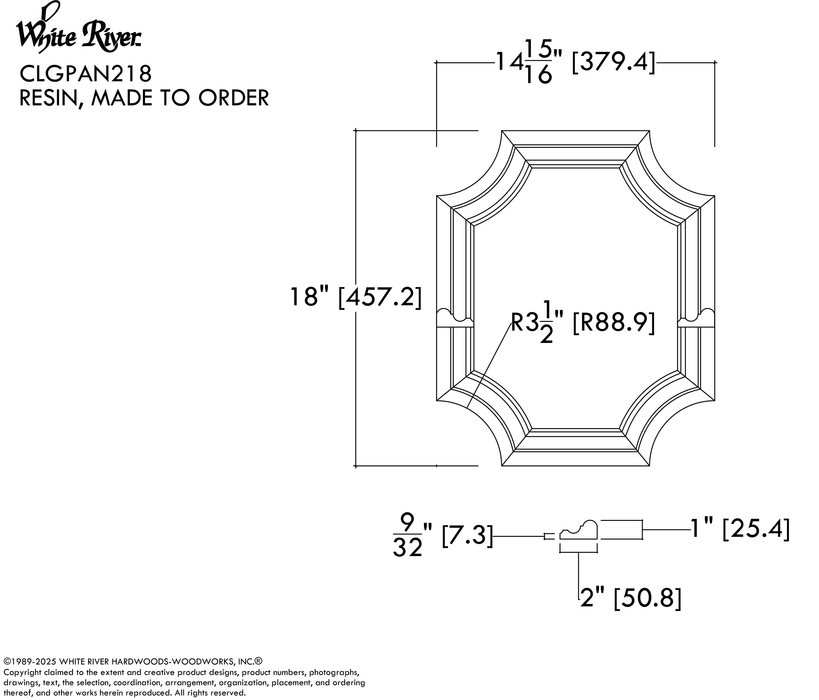

Dimensions & Specifications
| SKU |
Profile |
Width |
Height |
Depth |
Material |
Sold As |
| CLGPAN218 |
Coved Corner |
18″ |
15″ |
1″ Depth |
Cast Resin |
1 Pair |
* Unfinished — ready to paint, gild, or finish. Pairs with CLGPAN221 and CLGPAN221-TIP to complete the tracery ceiling system.
Why Tracery Panels
Classical Ceiling Detail, Simplified
⌒
Corner Geometry
The Coved Corner panel is purpose-built for the corners of a tracery ceiling layout. Its coved profile creates the precise transition geometry that completes the full pattern — without the Coved Corner, the system is unfinished.
▣
Cast Resin Construction
Precision-cast from durable resin, each panel captures fine architectural relief detail cleanly and consistently. Lightweight for ceiling installation, with the dimensional stability needed for repeating patterns that must align perfectly.
★
Sold in Pairs
Sold as a pair so opposing corners of a ceiling bay are always matched. Both pieces from the same casting run — guaranteed consistent depth, profile, and surface detail across the full installation.
⊞
Ready to Finish

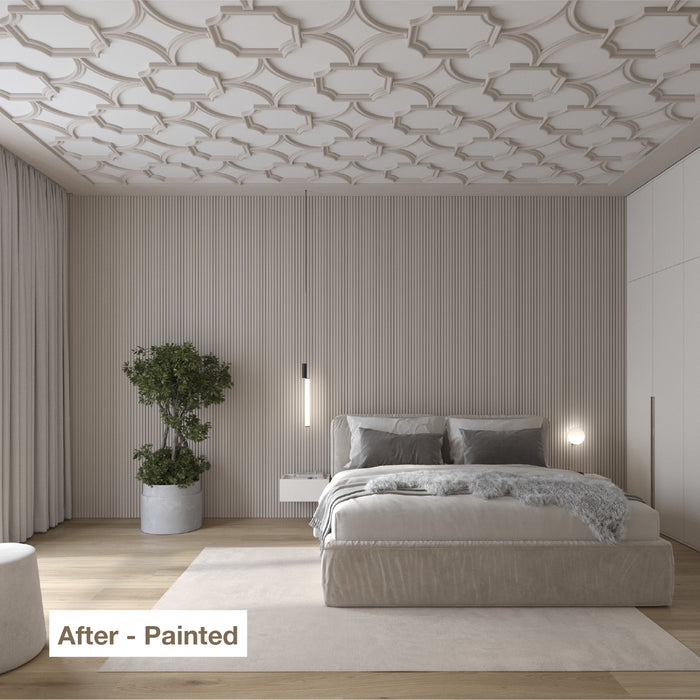

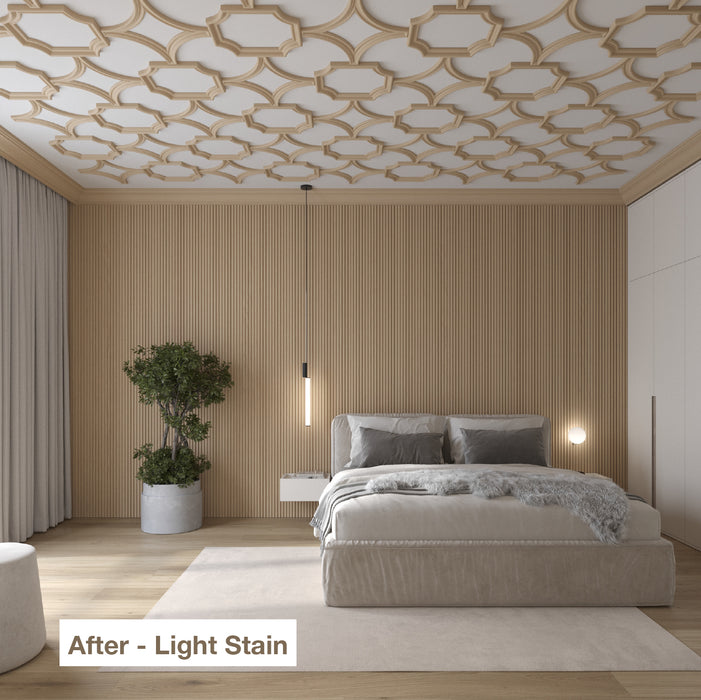

Supplied unfinished — paint, gild, whitewash, or apply any finish treatment to match your ceiling. Resin accepts most paint and finish systems without priming. Test on an off-cut before full application.
Installation
Installing Tracery Panels
1
Plan Your Layout
Map out the full ceiling pattern before installing any pieces. Locate the center of the ceiling bay and work outward. Confirm panel counts for the full layout using the standard formula.
2
Dry Fit First
Dry fit the full layout — including corner panels and tips — before applying any adhesive. Confirm spacing, alignment, and that the pattern reads correctly from below.
3
Apply Adhesive
Use a construction adhesive suitable for resin. Apply to the back face of each panel. Position carefully — resin-to-drywall adhesion sets quickly and repositioning after contact is difficult.
4
Secure Temporarily
Use temporary supports or finishing nails to hold each panel in place while adhesive cures. Remove supports once fully set. Fill nail holes before finishing.
5
Fill & Finish
Caulk seams between panels and at the ceiling perimeter. Fill any fastener holes. Apply finish — paint, gild, or specialty treatment — once all panels are set and seams are clean.
6
Install Tips Last
Install the Tracery Ceiling Tips (CLGPAN221-TIP) after all main panels are set. Tips fill the intersections and are the final detail that completes the pattern.

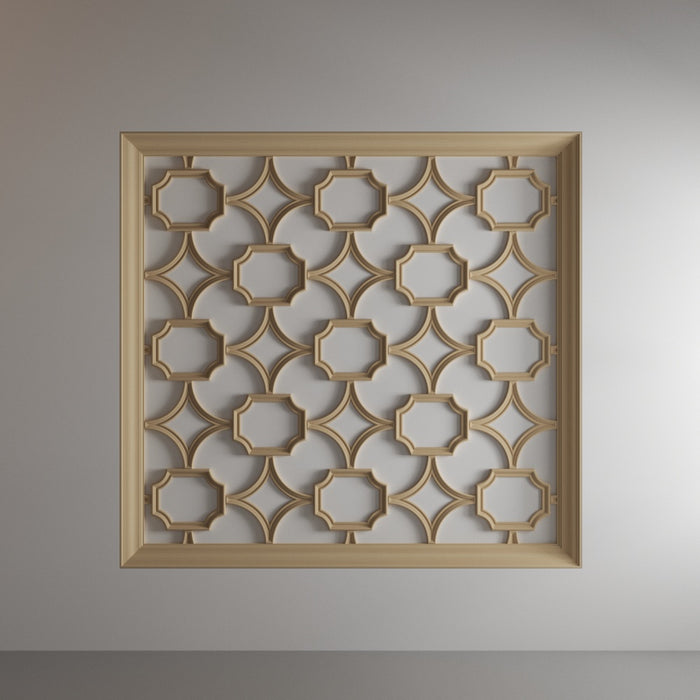

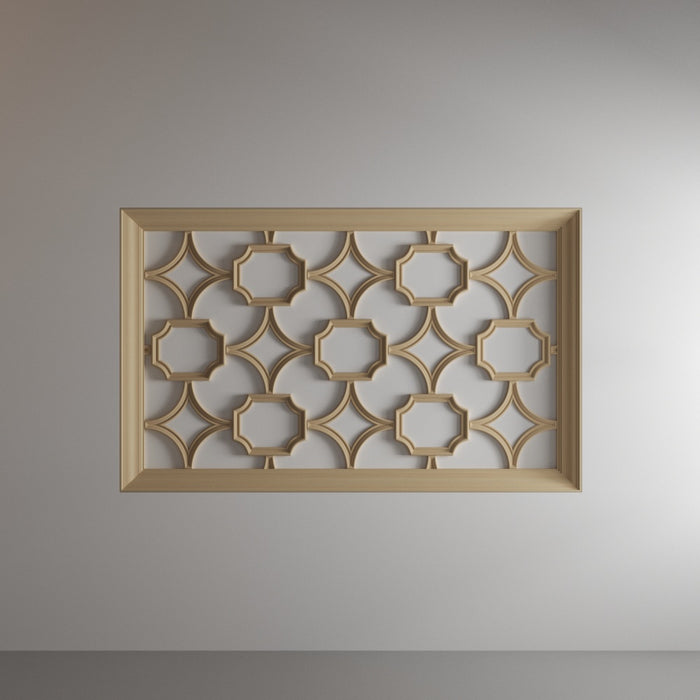

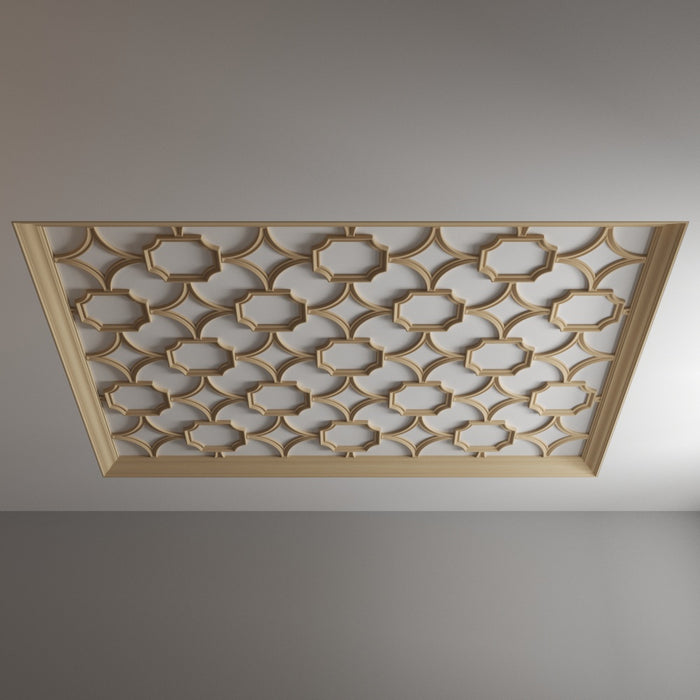

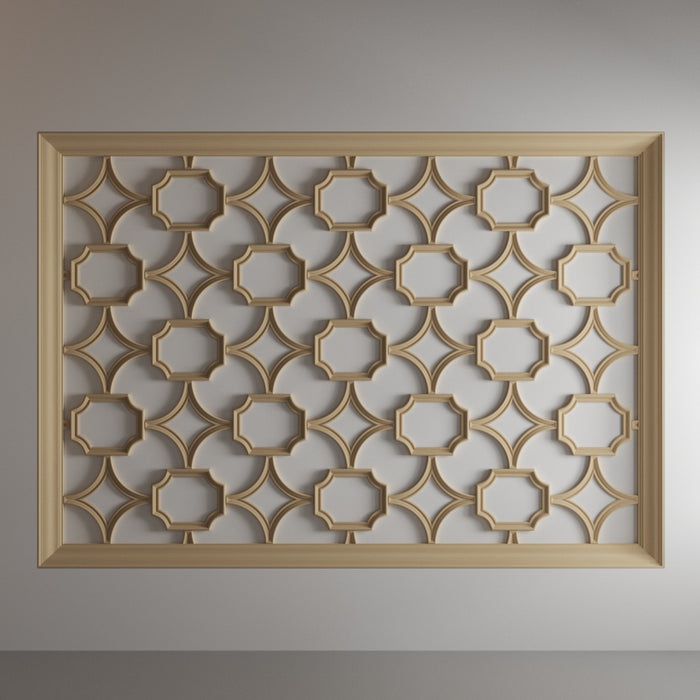

Complete the System

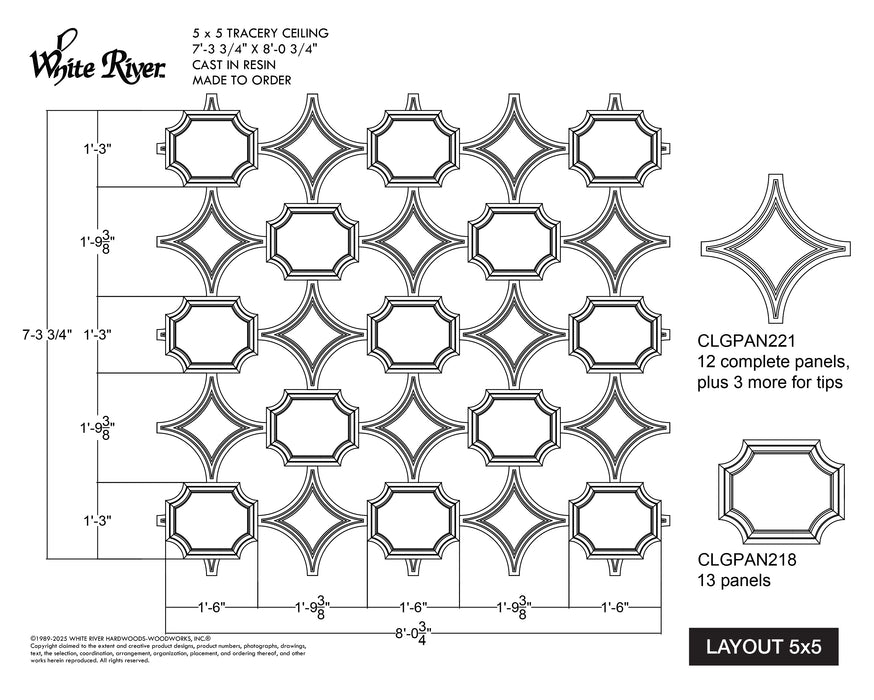

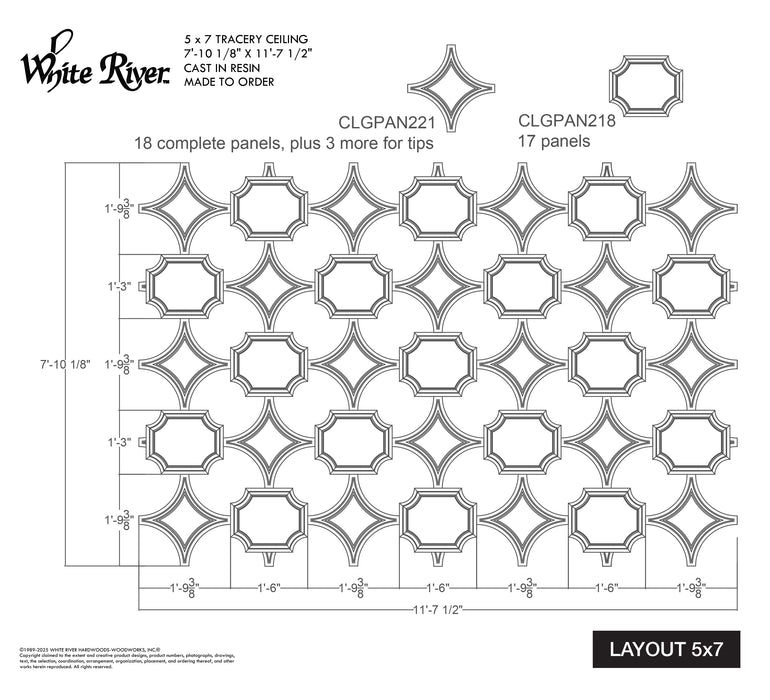

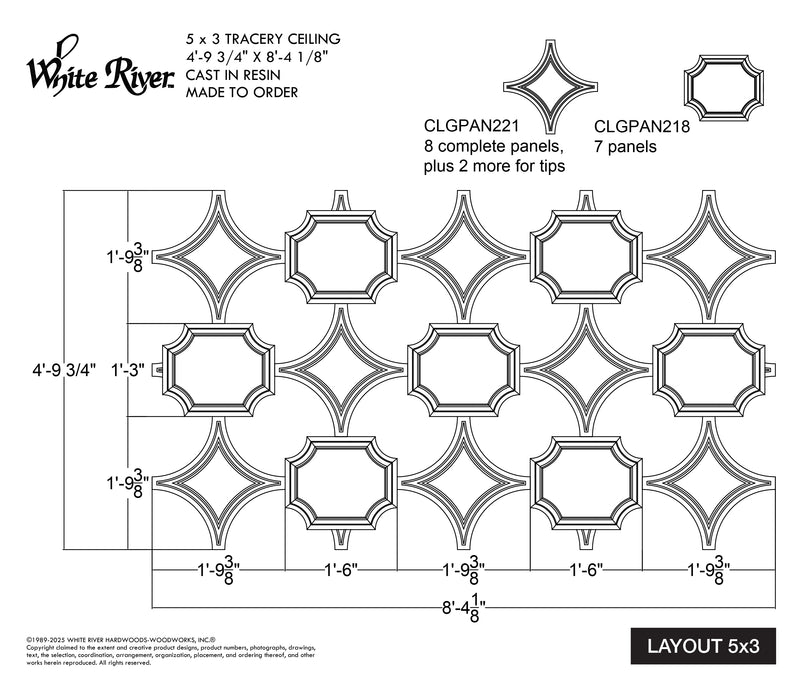

The Coved Corner Tracery Panel (CLGPAN218) works as part of a three-piece system. To recreate the standard tracery ceiling layout: 7 × CLGPAN218 + 8 × CLGPAN221 + 6 × CLGPAN221-TIP. All three pieces are required for the complete pattern.
Shipping
Tracery panels ship via standard carrier. Lead time is approximately 7–10 business days from order confirmation, subject to availability. Contact our sales team at 1-800-558-0119 for freight quotes on larger orders.
CLGPAN218 — Coved Corner Tracery Panel, 18″ × 15″ × 1″. Sold in pairs.
